PlanStudio 3.13

New Features

Trace Tool – Room Mode

• Introduced Room Mode to automatically generate rooms on plans and enter in the text labels.
  • Room labels are now generated by reading text directly from the underlying graphics or annotations.
  • Optional toggle to generate rooms for all enclosed spaces where labels aren’t detected. Enabling this option will add additional rooms and use auto-generated labels, allowing for quick bulk room creation even when no text is available.

Trace Tool – Navigation Mode

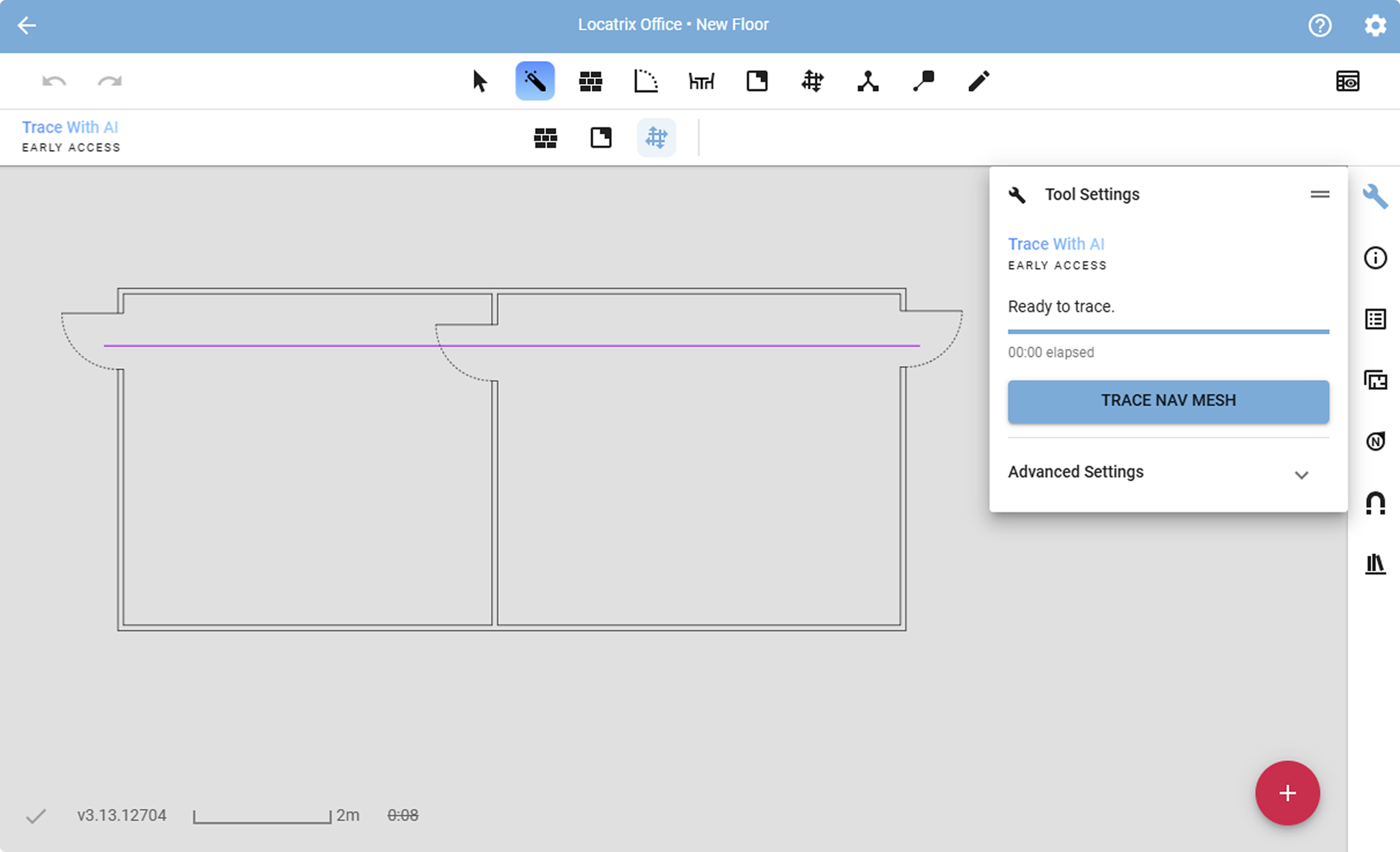

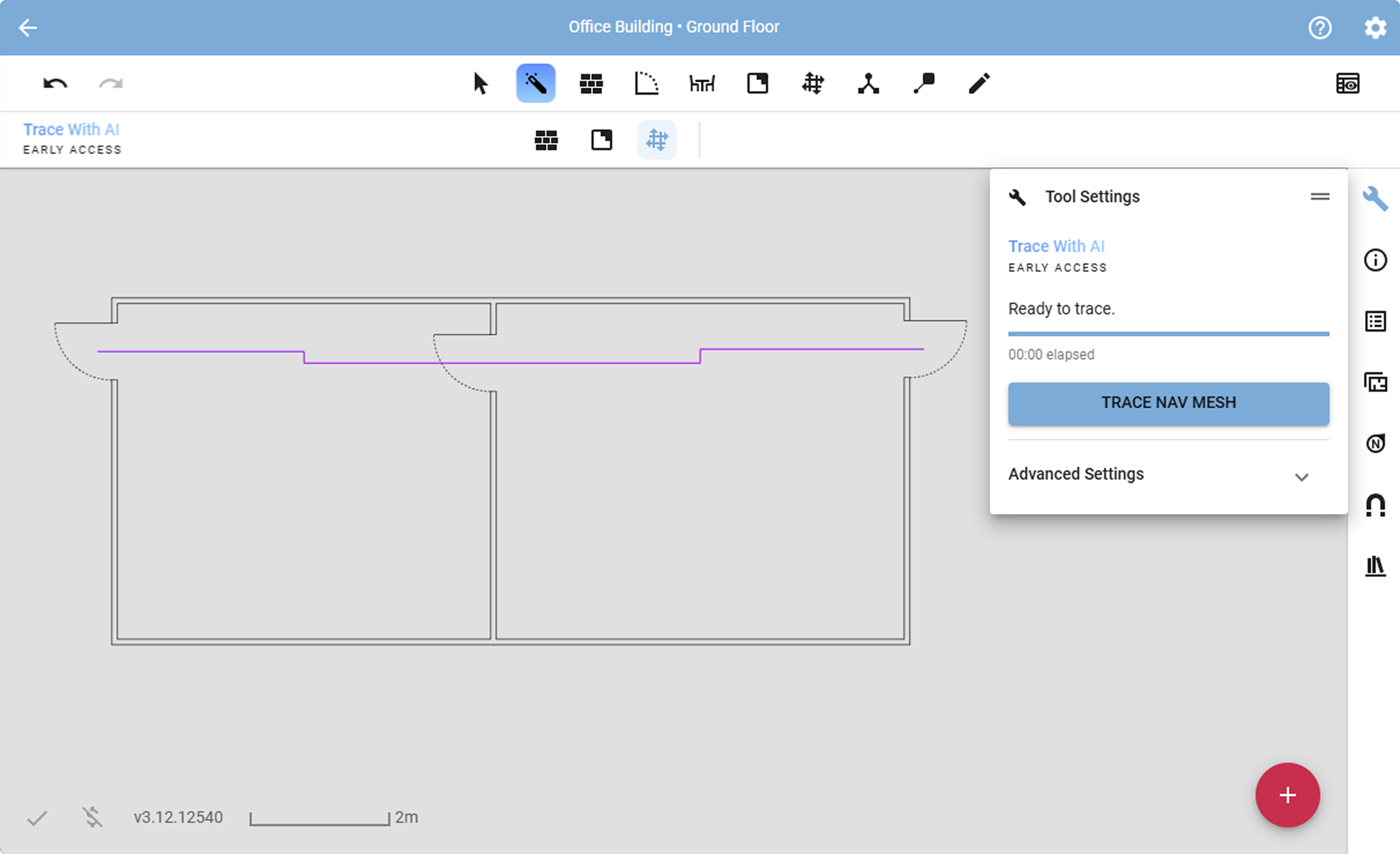

• Improved navmesh generation for cleaner results.
  • Lines no longer need to pass exactly through door centres.
  • Navmesh lines are no longer created through windows or run through wall blobs.

Trace Tool – Wall Mode

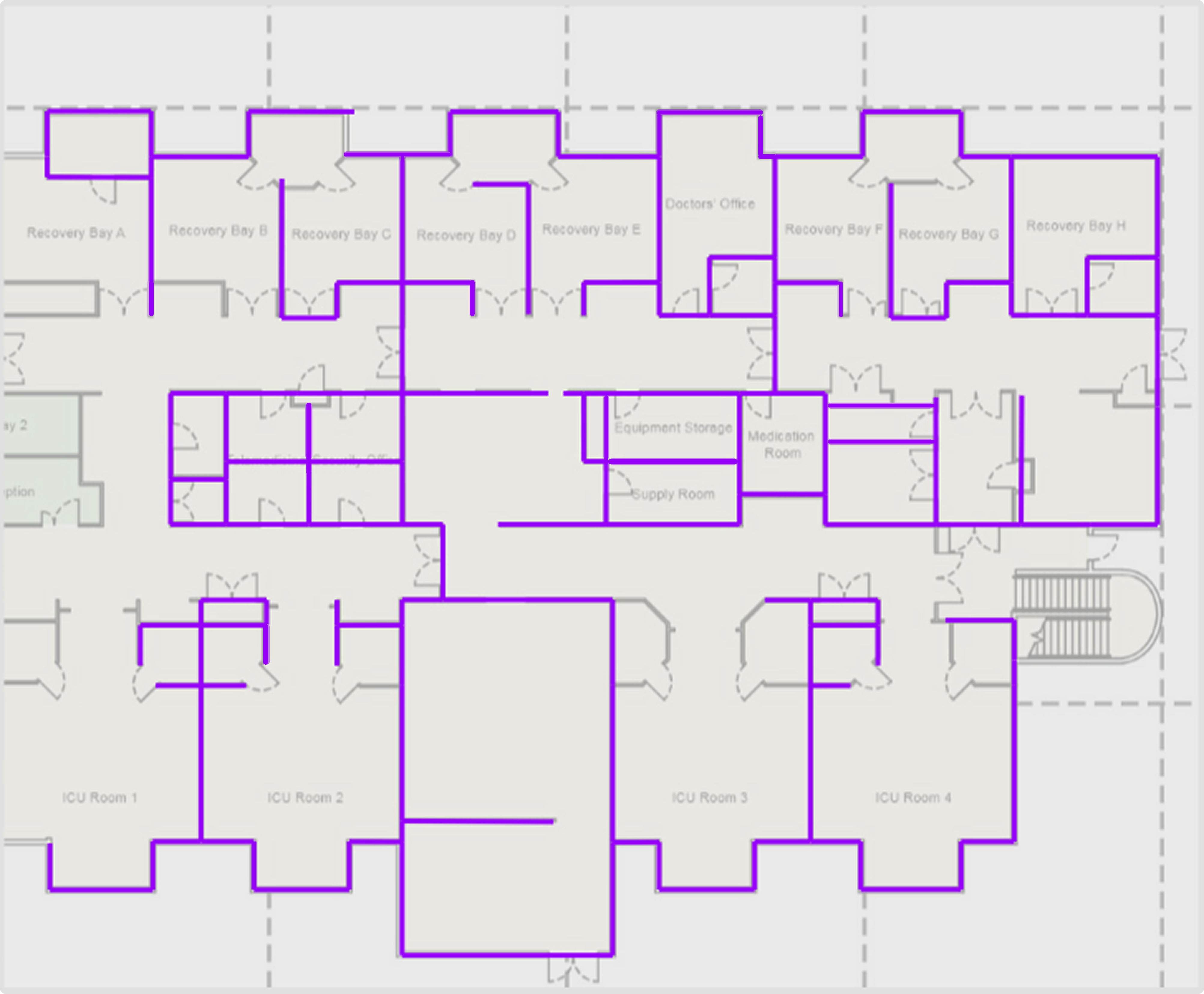

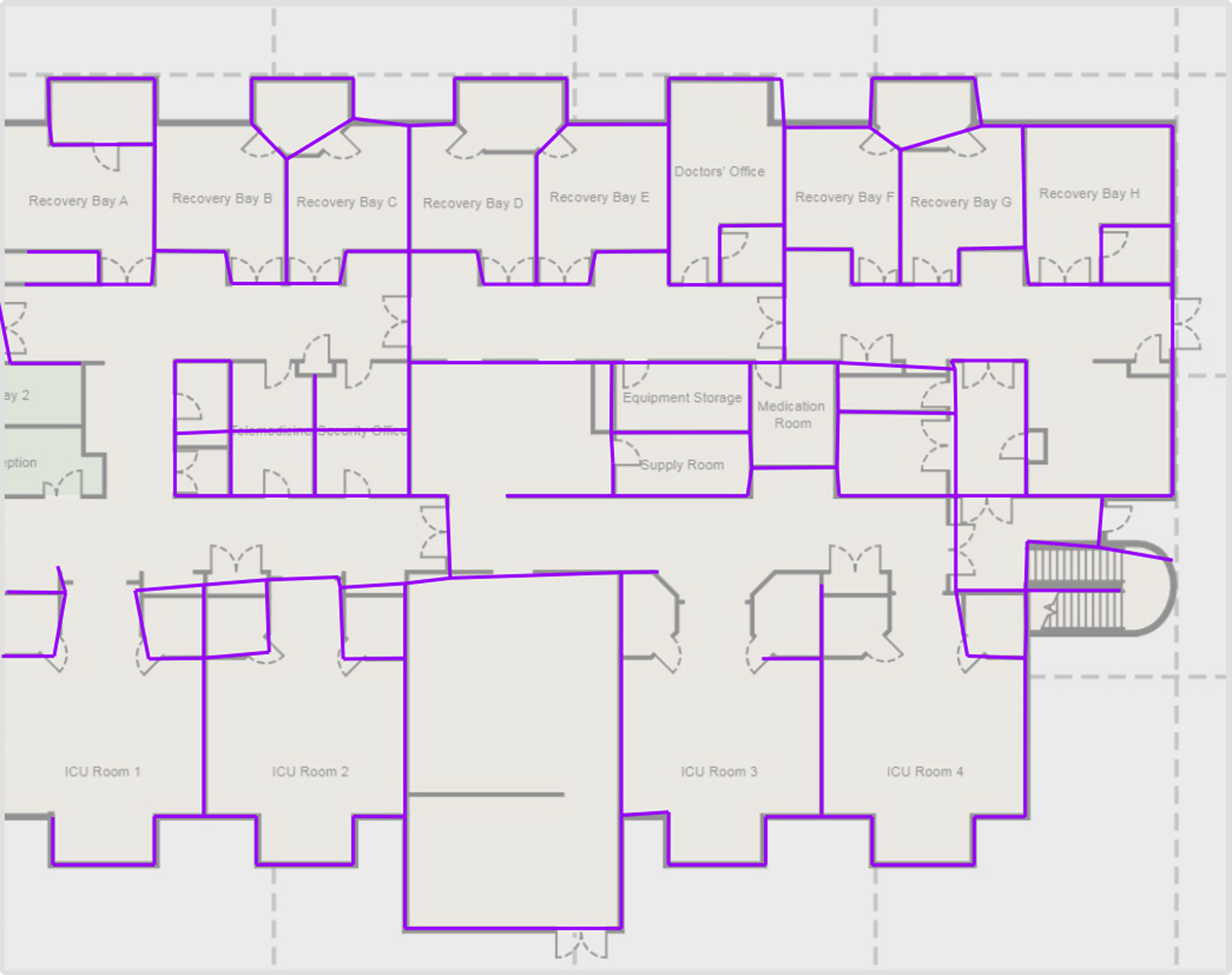

• Walls now snap to 90 degrees when using heavy cleanup, this should result in a big improvement to the usable walls the Trace tool generates and cut down the time required to ‘fix’ the automated walls.
  • Best results occur when the graphic/camera is rotated so most walls are horizontal or vertical.

Wall Brush Enhancements

• We have added a new option to the Walls paint mode, You can now choose to preserve the existing wall preset or fire rating when applying changes using the wall brush.

‍

Room Label Casing Options

• New option to convert room labels to uppercase or title case.
  • Complements automation by allowing users to change casing from the source graphic.

Photo Placement

• Adding a photo with GPS EXIF data will automatically reposition the photo annotation pin to the correct latitude/longitude on your plan.

‍

Colour Picker Update

• All colour pickers now include a transparency slider.

‍

General

• Various stability improvements across the platform.

Bug Fixes

• Fixed an occasional crash when using Trace Tool Navigation Mode.
• Fixed block plan legends not accounting for identified zone categories in all visible plans.
• Improved German translations.
