PlanStudio 3.12

New Features

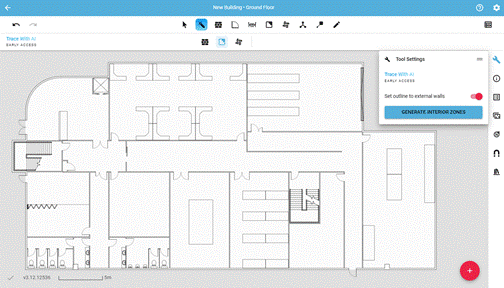

Trace Tool - Added a Zone Mode

• Automatic Interior Zone Generation

  • PlanStudio can now detect bounding walls in a plan and automatically fill the building with an interior zone.
• Convert Outline to External Walls Toggle

  • Added an optional toggle to automatically convert outline walls into external walls, saving time when using AI.

Streamlined Login Process

• Logging into PlanStudio is now smoother and supports password managers. Desktop users will be redirected to their web browser for login.

‍

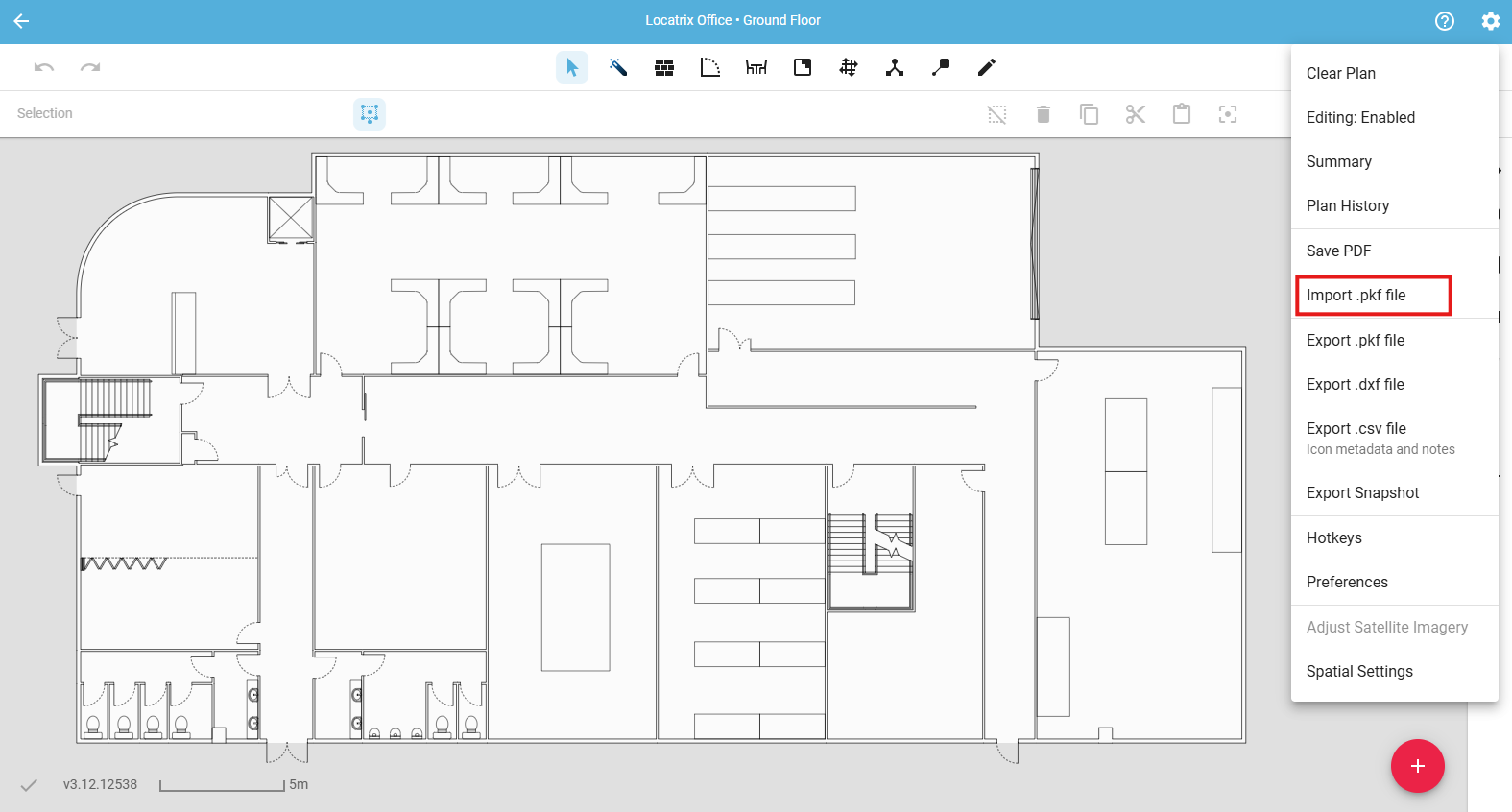

Faster PKF File Import

• You can now import PKF files faster by dragging and dropping them directly into the plan editor, or by using the “Import .PKF File” option in the settings gear of your Plan Editor.

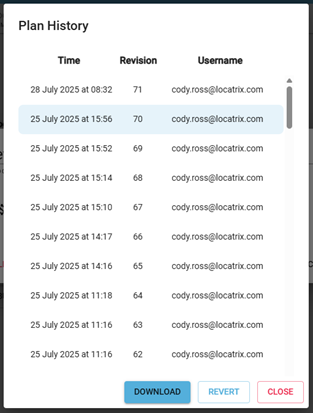

Plan History

• Partner Admins and Content Admins now have an additional way they can view a plan’s history.

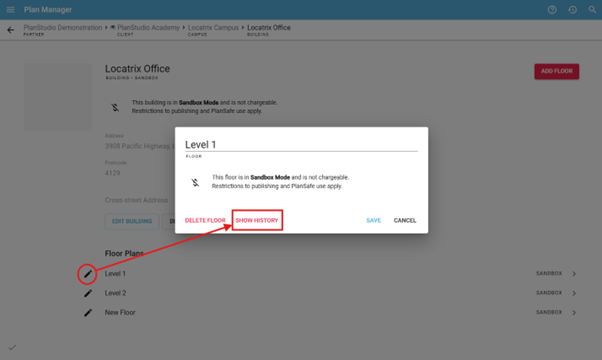

• By clicking the edit floor button and selecting Show History in the Plan Manager, you can now revert to or download a copy of a previous version of a plan without needing to open it.

Improvements to the Plans Panel user experience.

Overall stability improvements of PlanStudio.

Improved German translations.

‍

Account Management

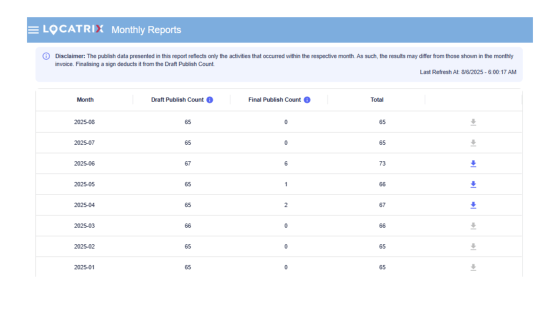

• This month saw an update to the Monthly Reports page to include an option to download the full Sign publish history for each month.

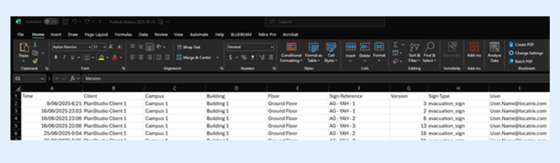

• Clicking the download button will provide you with a .CSV file that includes the;

  • Date and time for each publish.
  • Name of the client, campus, building and floor.
  • Version number for each sign.
  • The sign type: Evacuation sign, block plan, standalone etc.
  • The sign reference for each publish.
  • The PlanStudio user that published the sign.

Bugfixes

• Fixed crash when exiting the Plan Editor.
• Fixed crash on the siteplan when managing building footprints.
• Fixed favourite icon manager button sometimes failing to open the dialog when clicked.
• Improved German translations.
